Lichuan 2-Axis DC Closed Loop Stepper Motor Drivers Controller Kit
2.2N.m 2Phase Nema23 DC24V~50V 3.0/4.0A 1000PPR
Lichuan 2-Axis DC Closed Loop Stepper Motor Drivers Kit
Product Description
The 2-Axis DC Closed Loop Stepper Motor Drivers Kit by Lichuan delivers precise motion control and high torque output
with closed-loop feedback technology. The kit comes complete with
two high-performance stepper motors, two drivers, and necessary
cables, making installation and integration fast and hassle-free.
Designed to prevent step loss, this kit maintains smooth operation
under heavy loads and is compatible with most industrial
controllers.
Product Introduction
The Lichuan 2-Axis DC Closed Loop Stepper Motor Drivers Kit is designed for high-precision motion control applications. With
torque options ranging from 1.0N·m to 3.5N·m, this kit provides
reliable closed-loop feedback for accurate positioning, making it
ideal for CNC machines, 3D printers, laser cutting systems, and
other automation equipment. It ensures smooth, precise movement
even under variable loads, delivering industrial-grade performance
for both professional and DIY applications.
Product Information
Product Name: Lichuan 2-Axis DC Closed Loop Stepper Motor Drivers Kit
Torque Options: 1.0 / 1.5 / 2.0 / 2.2 / 3.0 / 3.5 N·m
Motor Type: 2-Phase Nema23 Stepper Motor
Voltage Range: DC24V~50V
Current Range: 3.0~4.0A
Resolution: 1000PPR (Pulse Per Revolution)
Control Mode: Closed-loop stepper driver system
Applications: CNC, 3D printing, laser engraving/cutting, industrial automation
Specifications & Technical Data
| Feature | Specification |
|---|
| Product Name | Lichuan 2-Axis DC Closed Loop Stepper Motor Drivers Kit |
| Torque Options | 1.0 / 1.5 / 2.0 / 2.2 / 3.0 / 3.5 N·m |
| Motor Type | 2-Phase Nema23 Stepper Motor |
| Voltage | DC24V~50V |
| Current | 3.0~4.0A |
| Encoder Resolution | 1000PPR |
| Driver Type | Closed-loop stepper driver |
| Application | CNC, 3D Printing, Laser Cutting, Industrial Automation |
| Dimensions | Standard Nema23 |
| Warranty | 12 months |
Product Features
High Precision Control: Closed-loop system eliminates missed steps.
Multiple Torque Options: Provides flexibility for various load requirements.
Wide Voltage Range: Operates efficiently between DC24V and 50V.
Plug-and-Play Installation: Pre-wired for easy integration with controllers.
Durable and Reliable: Industrial-grade components ensure long-term performance.
Product Technology
The 2-Axis DC Closed Loop Stepper Motor Drivers Kit uses encoder feedback technology to monitor motor position in real
time. When the motor experiences load changes, the driver
automatically adjusts current and torque to maintain exact
positioning, ensuring high-speed response and accurate motion.

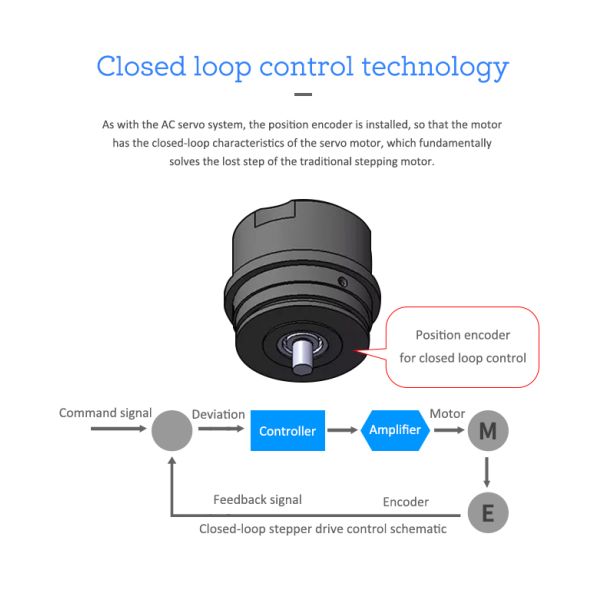

Working Principle
Stepper motors with closed-loop feedback detect deviations from the
commanded position.
Drivers automatically compensate torque and current to correct
errors.
Continuous feedback ensures stable, precise motion even under
varying loads.
Application Areas
CNC milling and routing machines
3D printing systems
Laser engraving and cutting
Robotics and automated assembly lines
Industrial automation equipment
Product Advantages
High-precision positioning with step-loss prevention
Wide torque range suitable for different load applications
Easy integration with existing motion control systems
Reliable operation under continuous use
Reduced vibration and low-noise operation
Product Services
Comprehensive technical support and installation guidance
Firmware updates and driver customization options
OEM/ODM customization for motor specifications, voltage, and
current
Production Process
Motor winding and assembly
Driver PCB manufacturing and testing
Encoder installation and calibration
Final assembly and quality control inspection
Packaging and shipping

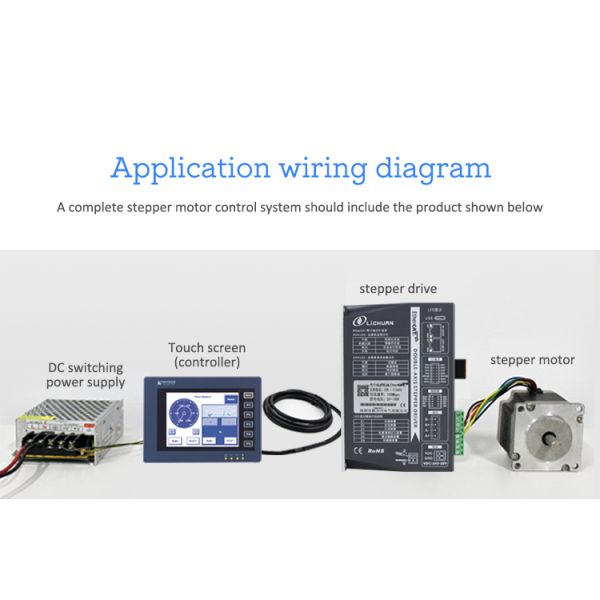

Operating Instructions
Connect motors to the drivers using supplied cables.
Connect the drivers to a DC24V~50V power supply.
Connect the drivers to your motion controller.
Power on the system and verify encoder feedback.
Adjust driver parameters for torque, speed, and microstepping as
needed.
Safety Precautions
Ensure voltage and current match specifications.
Avoid exposure to moisture and extreme temperatures.
Disconnect power before making wiring changes.
Do not attempt to disassemble drivers without professional
guidance.
Company Overview
Lichuan is a leading manufacturer of high-precision motion control
solutions, specializing in stepper motors, drivers, and closed-loop
systems. Our products are widely used in CNC, 3D printing, laser
cutting, and industrial automation. We are committed to delivering
reliable, high-performance solutions for professional and DIY
applications worldwide.
Certifications & Quality Assurance
Customer Support
24/7 technical assistance
Online manuals, setup guides, and video tutorials
OEM/ODM customization support
FAQ
Q1: Is this kit compatible with standard CNC controllers?
A1: Yes, it supports most CNC and motion control systems.
Q2: Does it include wiring and connectors?
A2: Yes, the kit comes with all necessary components for
plug-and-play installation.
Q3: What is the warranty period?
A3: The standard warranty is 12 months.
Q4: Can it operate under heavy load continuously?
A4: Yes, the drivers have overcurrent and thermal protection for
reliable continuous operation.
