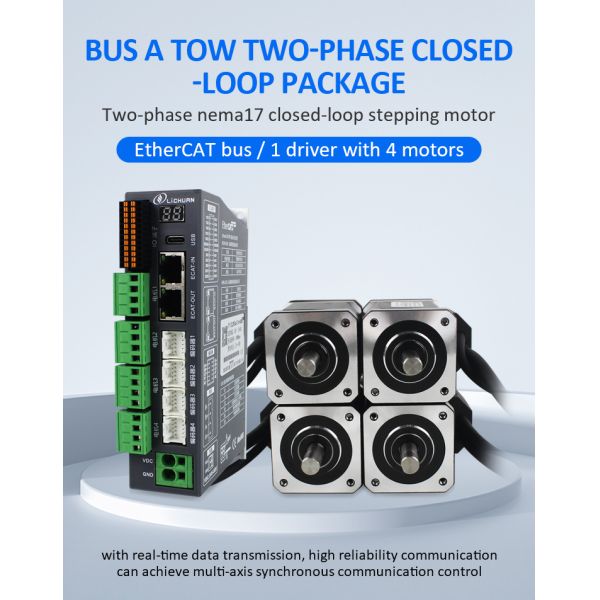

Lichuan 4-Axis DC Closed Loop Stepper Motor Drivers Controller Kit
0.48N.m 2Phase Nema17 DC24V~50V 1.2A 1000PPR
Lichuan 4-Axis DC Closed Loop Stepper Motor Drivers Kit
0.48/0.72N.m Nema17 DC24V–50V 1.2A 1000PPR
Product Introduction
The Lichuan 4-Axis DC Closed Loop Stepper Motor Drivers Kit is a high-precision motion control solution designed for modern
industrial automation and CNC motion systems. This 4-Axis DC Closed Loop Stepper Motor Drivers Kit integrates four digital drivers with NEMA17 closed loop stepper
motors and high-resolution encoders to deliver reliable, accurate,
and efficient multi-axis motion control.
The system operates with DC24V–50V input voltage and supports 1.2A rated current, making the 4-Axis DC Closed Loop Stepper Motor Drivers Kit suitable for small and medium automation equipment. With 1000PPR encoder feedback, the system can monitor motor position in real time and
automatically correct position errors.
Compared with traditional open-loop stepper motors, the 4-Axis DC Closed Loop Stepper Motor Drivers Kit eliminates step loss, improves torque stability, and reduces
vibration. This makes it an ideal motion control solution for CNC
machines, robotics, laser equipment, and automated production
lines.
Product Information
Lichuan 4-Axis DC Closed Loop Stepper Motor Drivers Kit Overview
The Lichuan 4-Axis DC Closed Loop Stepper Motor Drivers Kit is designed to provide synchronized multi-axis motion control for
industrial automation systems. It combines advanced digital stepper
drivers, NEMA17 hybrid stepper motors, and encoder feedback
technology to ensure precise positioning and smooth operation.
Each axis in the 4-Axis DC Closed Loop Stepper Motor Drivers Kit operates independently, allowing accurate motion control in
complex automation systems. The closed loop feedback system
continuously monitors motor movement and corrects deviations
instantly.
Key highlights of the 4-Axis DC Closed Loop Stepper Motor Drivers Kit include:
Multi-axis synchronized motion control
High precision encoder feedback system
Low vibration and low noise operation
Stable torque output and improved efficiency
This 4-Axis DC Closed Loop Stepper Motor Drivers Kit is widely used in industrial automation, CNC machinery, and
robotics applications requiring precise motion control.
Product Description
The Lichuan 4-Axis DC Closed Loop Stepper Motor Drivers Kit integrates NEMA17 stepper motors with 0.48N.m and 0.72N.m torque options, providing flexible motion control solutions for various
automation systems.
This 4-Axis DC Closed Loop Stepper Motor Drivers Kit uses advanced closed-loop control technology with a 1000PPR encoder, allowing the system to monitor motor position and automatically
compensate for errors.
With a DC24V–50V power supply range, the 4-Axis DC Closed Loop Stepper Motor Drivers Kit can easily integrate into existing industrial control systems.
The system is designed to deliver:
Accurate positioning control
High torque stability
Smooth acceleration and deceleration
Reliable long-term performance
Basic Information
| Item | Details |
|---|
| Product Name | Lichuan 4-Axis DC Closed Loop Stepper Motor Drivers Kit |
| Motor Frame | NEMA17 |
| Motor Type | Hybrid Closed Loop Stepper Motor |
| Axis Quantity | 4 Axis |
| Phase | 2 Phase |
| Rated Torque | 0.48N.m / 0.72N.m |
| Rated Current | 1.2A |
| Input Voltage | DC24V–50V |
| Encoder Resolution | 1000PPR |
| Control Mode | Pulse / Direction |
| Application | CNC / Robotics / Automation |
Specifications
| Parameter | Specification |
|---|
| Motor Type | Closed Loop Hybrid Stepper |
| Frame Size | NEMA17 |
| Phase | 2 Phase |
| Step Angle | 1.8° |
| Rated Torque | 0.48N.m / 0.72N.m |
| Rated Current | 1.2A |
| Voltage Range | DC24V–50V |
| Encoder Resolution | 1000PPR |
| Control Signal | Pulse / Direction |
| Axis Control | 4 Axis |
| Protection | Over-current / Over-voltage / Position Error |
Product Selling Points
High Precision Motion Control
The 4-Axis DC Closed Loop Stepper Motor Drivers Kit uses encoder feedback to provide precise positioning accuracy and
eliminate step loss.
Stable Torque Output
With torque options of 0.48N.m and 0.72N.m, the 4-Axis DC Closed Loop Stepper Motor Drivers Kit ensures stable motion even under varying load conditions.
Multi-Axis Control Capability
The 4-Axis DC Closed Loop Stepper Motor Drivers Kit allows synchronized control of four independent axes for complex
motion systems.
Energy Efficient Operation
Closed loop control optimizes current output and improves motor
efficiency.
Product Features
Key features of the Lichuan 4-Axis DC Closed Loop Stepper Motor Drivers Kit include:
NEMA17 closed loop stepper motors
1000PPR high-resolution encoder feedback
Multi-axis motion synchronization
Smooth and stable motion performance
Compatible with PLC and CNC controllers
Product Technology
The 4-Axis DC Closed Loop Stepper Motor Drivers Kit integrates advanced motion control technology:
Digital stepper driver technology
Hybrid servo control algorithm
Real-time encoder feedback monitoring
Intelligent current control system
These technologies allow the 4-Axis DC Closed Loop Stepper Motor Drivers Kit to deliver high precision and reliable performance in industrial
automation systems.
Product Working Principle
The 4-Axis DC Closed Loop Stepper Motor Drivers Kit operates using a closed-loop feedback control system.
Working process:
Controller sends pulse signals to the driver
Driver energizes the stepper motor phases
Motor rotates according to control commands
Encoder monitors the actual motor position
Driver compares command and feedback signals
Position errors are corrected automatically
This control mechanism ensures accurate positioning and stable
motion.
Application Fields
The Lichuan 4-Axis DC Closed Loop Stepper Motor Drivers Kit is widely used in:
CNC engraving machines
3D printing equipment
Robotics systems
Semiconductor equipment
Automatic assembly lines
Laser cutting machines
Product Applications
Typical applications of the 4-Axis DC Closed Loop Stepper Motor Drivers Kit include:
Multi-axis CNC motion control
Robotic arm positioning systems
Precision laser engraving machines
Industrial automation production lines
Conveyor positioning systems
Product Advantages
Advantages of the Lichuan 4-Axis DC Closed Loop Stepper Motor Drivers Kit:
Product Service
We provide comprehensive service for the 4-Axis DC Closed Loop Stepper Motor Drivers Kit:
OEM / ODM customization
Technical installation guidance
Motion control configuration support
Global logistics delivery
FAQ
What is a 4-Axis DC Closed Loop Stepper Motor Drivers Kit?
A 4-Axis DC Closed Loop Stepper Motor Drivers Kit is a motion control system that uses four drivers and stepper
motors with encoder feedback to achieve precise multi-axis
positioning.
What torque options are available?
The Lichuan 4-Axis DC Closed Loop Stepper Motor Drivers Kit provides 0.48N.m and 0.72N.m torque options.
What voltage does the system support?
The system supports DC24V to DC50V power input.
What industries use this kit?
The 4-Axis DC Closed Loop Stepper Motor Drivers Kit is widely used in CNC machines, robotics, and industrial
automation systems.
Production Process
The manufacturing process of the Lichuan 4-Axis DC Closed Loop Stepper Motor Drivers Kit includes:
Motor stator winding
Rotor magnet assembly
Encoder installation
Driver PCB assembly
System calibration and testing
Final inspection and packaging
Operation Method
Steps to use the 4-Axis DC Closed Loop Stepper Motor Drivers Kit:
Connect the DC24-50V power supply
Connect the NEMA17 stepper motors
Connect encoder cables
Connect motion controller or PLC
Configure driver parameters
Start multi-axis motion control
Precautions
When installing the 4-Axis DC Closed Loop Stepper Motor Drivers Kit:
Ensure correct wiring of motor and encoder cables
Use a stable DC power supply
Avoid high temperature environments
Secure motor mounting before operation
Company Introduction
Lichuan is a professional manufacturer of motion control products
including:
Closed loop stepper motors
AC servo motors and drives
Motor drivers and controllers
Industrial automation solutions
The Lichuan 4-Axis DC Closed Loop Stepper Motor Drivers Kit is widely exported to global markets and used by automation
equipment manufacturers worldwide.
Product Certifications
The Lichuan 4-Axis DC Closed Loop Stepper Motor Drivers Kit complies with international standards:
Quality Assurance
Each 4-Axis DC Closed Loop Stepper Motor Drivers Kit undergoes strict testing including:
Customer Service
We provide complete support for the Lichuan 4-Axis DC Closed Loop Stepper Motor Drivers Kit:
